Custom Flange Machining Services

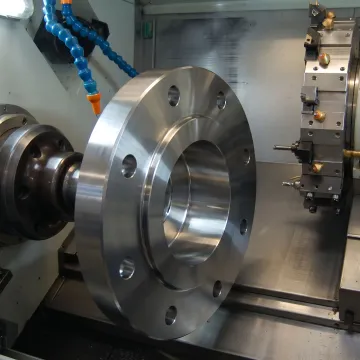

Custom machining is the process of manufacturing parts to a customer's exact drawing, dimensions, tolerances, material, and finish requirements rather than using standard off-the-shelf components. For custom flanges, this can include specific bore sizes, bolt-circle layouts, face types, threads, slots, and coatings. It is commonly used when assemblies require precise fit, performance, or industry-specific geometry.

A type 11 flange generally refers to a weld-neck flange under common flange classification systems. It features a long tapered hub that helps distribute stress and provides strong alignment in piping systems. This style is often selected for higher-pressure or higher-temperature applications because it offers reliable structural performance and a sound welded connection when properly machined and installed.

RF stands for raised face, and RTJ stands for ring-type joint. An RF flange has a slightly raised sealing surface that works with a gasket to create a seal in many standard industrial applications. An RTJ flange uses a precision-machined groove that accepts a metal ring gasket, making it better suited for higher-pressure and more demanding service conditions where sealing integrity is critical.

Custom flanges can be machined from aluminum, stainless steel, carbon steel, brass, and other alloys depending on strength, corrosion resistance, weight, and application requirements. M.A.R.'s Engineering supports a broad material range across its machining operations. Material selection is typically based on operating environment, mating components, pressure demands, and any finishing or plating requirements specified for the final part.

Yes. M.A.R.'s Engineering supports prototype quantities as well as repeat and higher-volume production runs. Its in-house capabilities help maintain consistency as projects scale from first article parts to ongoing manufacturing. This is especially valuable for custom flange work because the same shop can manage machining, secondary features, inspection, and finishing without handing the job off to multiple outside vendors.

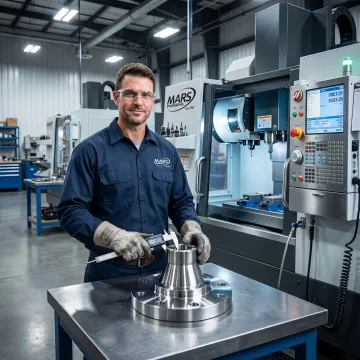

Accuracy depends on the part design and process used, but M.A.R.'s Engineering emphasizes close tolerance control and repeatability across machined features. Its broader machining capabilities include processes that can hold tolerances as tight as 0.0001 inches in applicable operations. For flanges, critical dimensions such as bore size, face alignment, and bolt-circle accuracy are controlled to match drawing and functional requirements.

Yes. In-house finishing options include zinc plating, black oxide, nickel, powder coating, polishing, and other surface treatments depending on the part and application. These services help improve corrosion resistance, appearance, wear performance, and readiness for installation. Keeping finishing in-house can also reduce scheduling delays and improve quality control compared with using separate outside vendors.

For the most accurate quote, provide a drawing or print, material specification, dimensions, tolerances, flange type, quantity, and any required finishing or secondary operations. It also helps to include application details, inspection needs, and delivery expectations. If the flange includes special features such as grooves, threads, slots, or bolt patterns, those should be clearly identified to avoid delays during review.
