Precision Turned Components for Connectors

Connector manufacturing typically involves material selection, precision turning or screw machining, drilling and milling of functional features, threading, deburring, finishing, inspection, and in some cases light assembly. For high-performance connector components, processes such as Swiss machining, CNC turning, and EDM are often used to hold tight tolerances, maintain feature alignment, and achieve repeatable quality across prototype and production quantities.

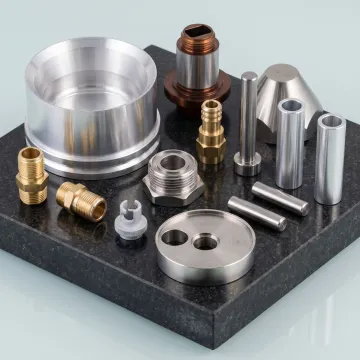

M.A.R.'s Engineering manufactures a wide range of connector-related parts, including fittings, adapters, hose barbs, tube connectors, contact extensions, spacers, sleeves, pins, and custom-profile turned components. We also support parts with internal and external threads, O-ring grooves, cross-holes, hex features, and other precision details required for sealing, alignment, and assembly performance.

We machine connector components in brass, stainless steel, aluminum, carbon steel, titanium, nickel alloys, copper, and selected engineering-grade plastics. Material selection depends on conductivity, corrosion resistance, strength, sealing requirements, and end-use environment. In-house finishing and plating options can further improve wear resistance, corrosion protection, and functional performance for demanding applications.

Depending on part geometry, material, and process, M.A.R.'s Engineering can achieve tolerances as tight as ±0.0001 inches on suitable features. Swiss machining and centerless grinding are especially effective for close-tolerance miniature and cylindrical parts. We review each drawing to confirm manufacturability, critical dimensions, and the most efficient process for maintaining repeatable accuracy.

Yes. Our equipment mix supports prototype development, short and medium runs, and high-volume production. CNC turning and Swiss machining are well suited for development and complex parts, while single-spindle and multi-spindle screw machining provide efficient output for repeat orders and larger quantities. This flexibility helps customers move from sampling to production with one manufacturing partner.

Yes. M.A.R.'s Engineering provides in-house finishing support that can include nickel, zinc, gold, black oxide, hard chrome, Teflon coating, polishing, powder coating, tumble deburring, and light assembly. These services help improve corrosion resistance, appearance, wear performance, and readiness for installation while reducing the need to send parts to outside vendors.

Our production is supported by an ISO-compliant quality system and compliance with Mil-1-45208A requirements. Quality controls are built into the manufacturing process to support dimensional consistency, traceability, and repeatability. For connector components, this is especially important where thread accuracy, sealing surfaces, bore dimensions, and feature relationships directly affect fit and performance.

We reduce lead times by combining multiple capabilities in one facility, including turning, screw machining, EDM, finishing, and light assembly. That integrated workflow minimizes outside processing delays, simplifies communication, and reduces administrative handoffs. In-house tooling support through Wire EDM also helps accelerate setup and production for custom connector components and repeat manufacturing programs.
