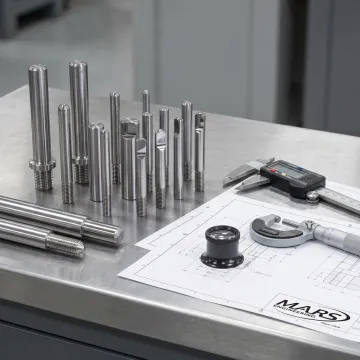

Custom Mold Core Pins & Inserts for Injection Molding

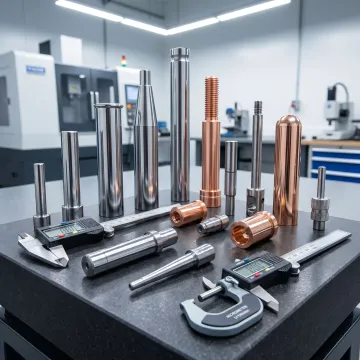

Custom mold core pins and inserts are tooling components used to form precise internal and external features in molded plastic parts. They are commonly used for holes, threads, undercuts, shutoffs, and detailed part geometry. Because these components directly affect part quality and tool life, they must be machined to tight tolerances, consistent finishes, and accurate feature relationships.

Material selection depends on wear resistance, thermal demands, corrosion exposure, and the molding application. M.A.R.'s Engineering works with stainless steel, tool steels, carbide-compatible EDM applications, aluminum, brass, titanium, nickel alloys, and engineering-grade polymers where appropriate. For tooling components, hardened and high-strength materials are often chosen to improve durability, dimensional stability, and service life in repeated molding cycles.

Tolerance capability depends on geometry, material, and process, but M.A.R.'s Engineering supports precision work as tight as ±0.0001 inches on select operations. Swiss machining, centerless grinding, CNC turning, and Wire EDM are used strategically to maintain dimensional accuracy, fine finishes, and repeatability. Inspection and traceability procedures help ensure critical dimensions are verified throughout production.

Yes. M.A.R.'s Engineering supports prototype quantities, short runs, and high-volume production depending on the component design and manufacturing method. CNC turning, Swiss machining, and EDM are well suited for development and custom tooling work, while single-spindle and multi-spindle screw machining support efficient repeat production. This flexibility helps customers move from initial tooling needs to ongoing supply with one manufacturing partner.

Wire EDM is especially valuable when mold inserts require sharp internal corners, intricate outlines, or features in hardened conductive materials that conventional machining cannot easily produce. It allows precise cutting with excellent repeatability and minimal mechanical stress on the workpiece. For complex insert geometry and custom tooling details, EDM can improve accuracy while reducing the need for multiple secondary operations.

Yes. In addition to machining, M.A.R.'s Engineering offers in-house finishing, plating, polishing, deburring, and light assembly services. These secondary operations help deliver tooling components that are closer to installation-ready while maintaining dimensional control. Keeping these processes in one facility can reduce scheduling delays, simplify project management, and improve consistency across the full manufacturing workflow.

M.A.R.'s Engineering operates under an ISO-compliant quality system and notes compliance with Mil-I-45208A requirements. Quality control is built into the production process through dimensional inspection, traceability, and process consistency across machining and finishing operations. This approach is especially important for mold core pins and inserts, where repeatability, fit, and surface condition directly affect tooling performance and molded part quality.

For the most accurate quote, provide part drawings, material requirements, tolerances, surface finish expectations, quantity, and any secondary process needs such as plating or polishing. If the component is part of an injection mold, include critical functional details like fit, wear areas, and mating features. Clear specifications help determine the best process combination, lead time, and production approach.
